Perimeter Insulation Board 3829

Perimeter Insulation Board 3829

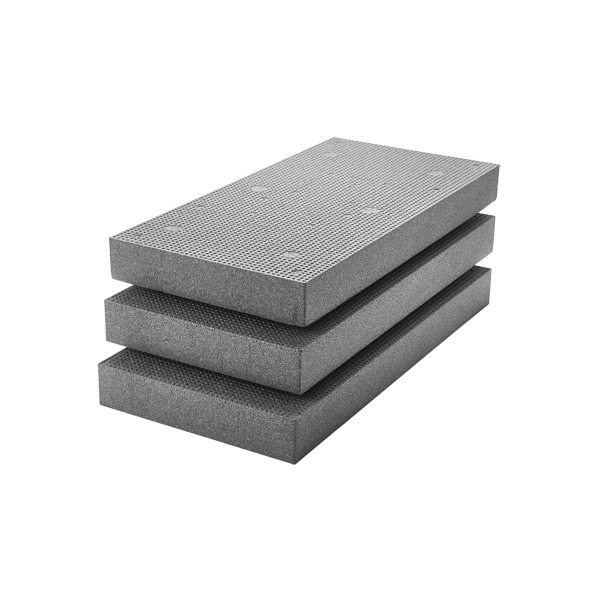

Insulation board, tested in the system build-up, for use in the Brillux ETIC systems. As base insulation on old and new builds, including integration up to approx. 30 cm into the soil and as perimeter insulation up to 3 m under ground level.




  • rot-resistant, hard foam insulation board embossed with a honeycomb pattern, in accordance with DIN EN 13 163
  • thermal conductivity: 0.032 W/(m · K) in the base area or 0.036 W/(m · K) a. 0.038 W/(m · K) in areas in contact with the soil*
  • PW perimeter and WAP base application type
  • with smooth surface
  • chemically and biologically neutral
  • resistant to moisture content and pollutants that occur in normal soil
  • approved perimeter insulation board from 2 to 30 cm
  • length: 100 cm, width: 50 cm


*Brillux Consulting Service provides information on the exact value.
